Automatic Timed Condensate Drain Valve 1/2" AC 110V 2-way Electronic Timed Ai...
$ 18.23
Description

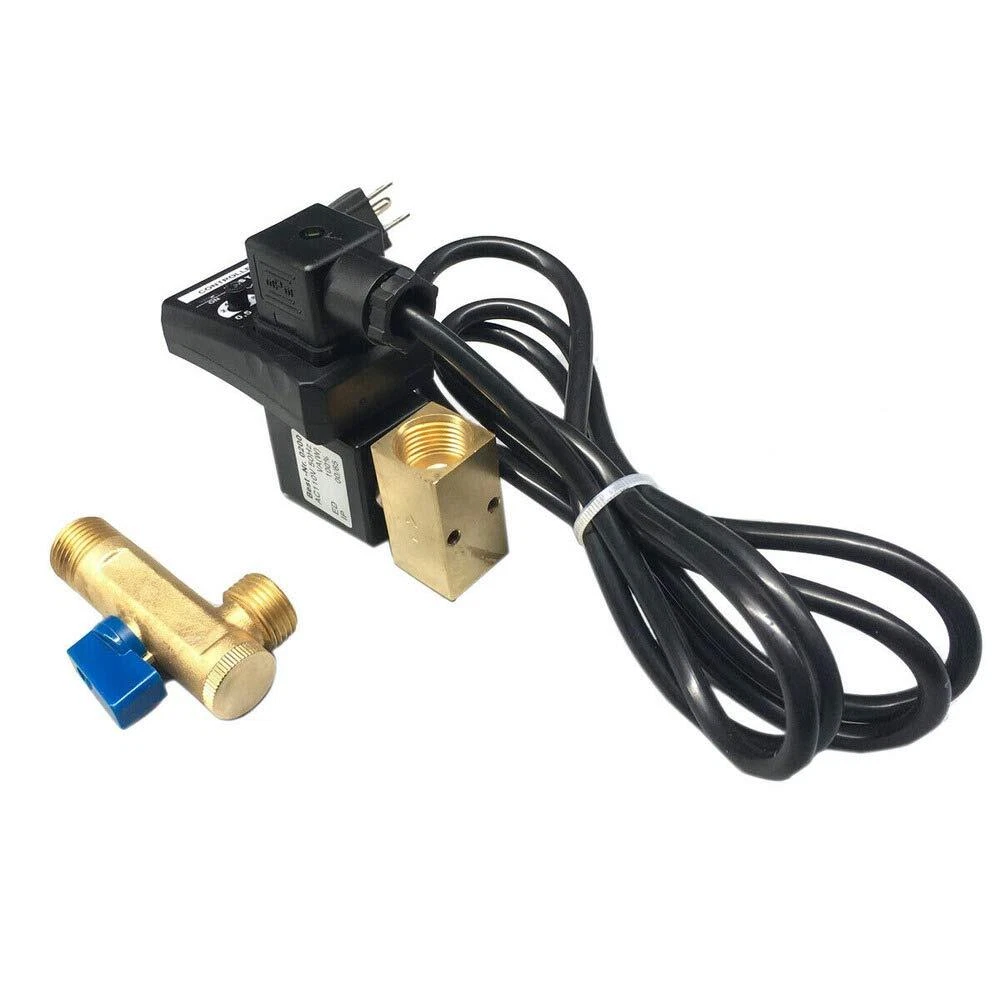

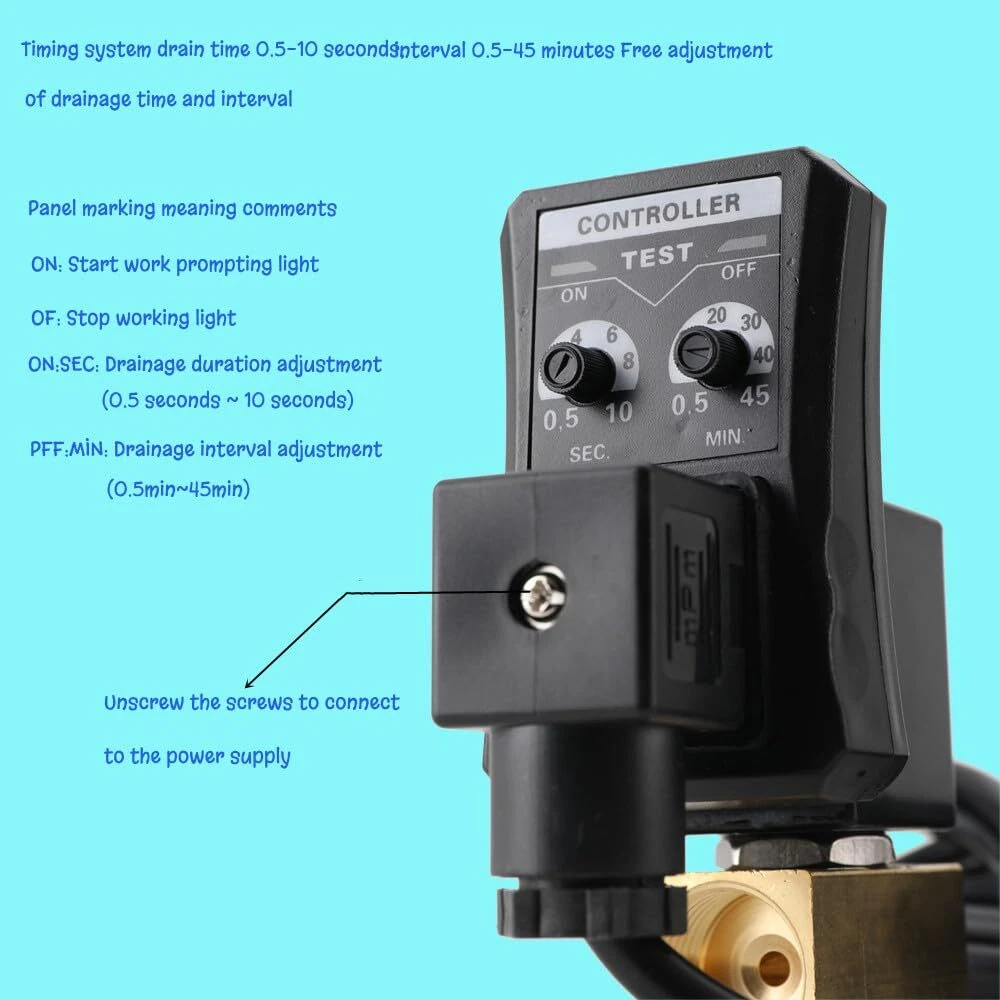

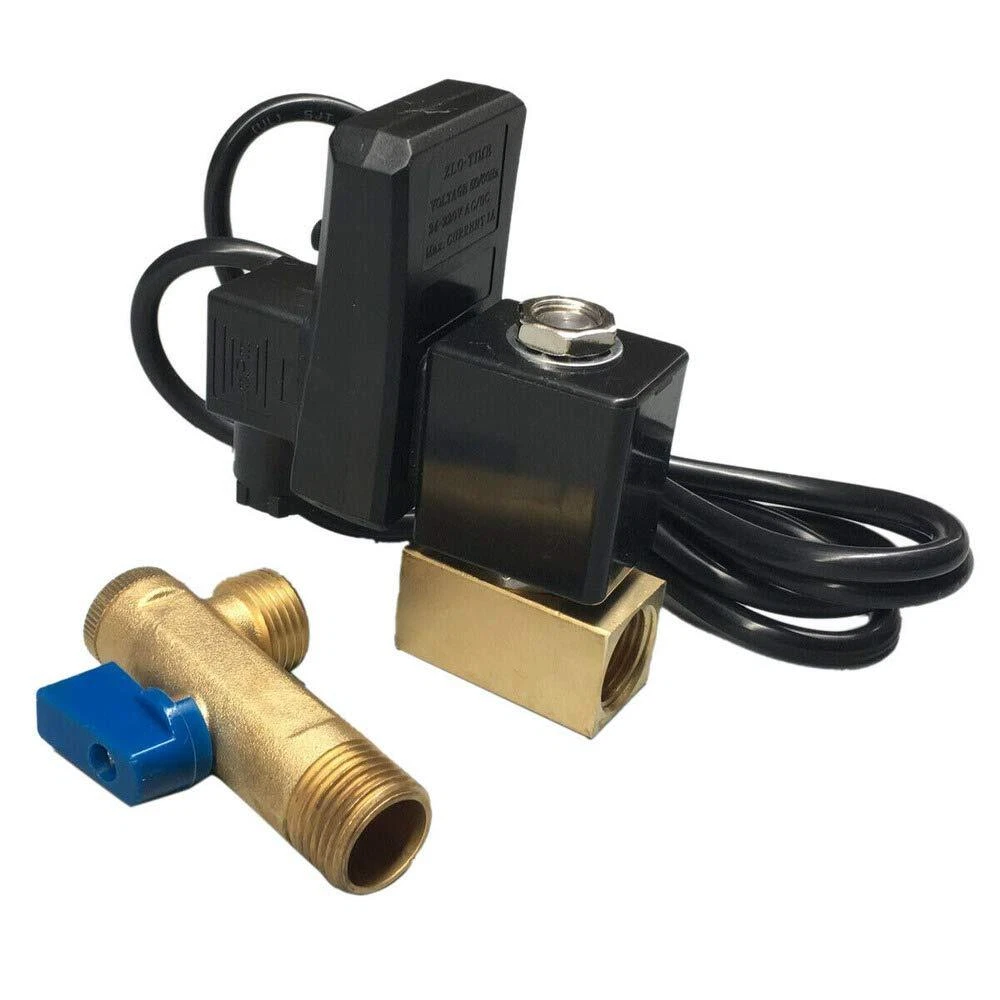

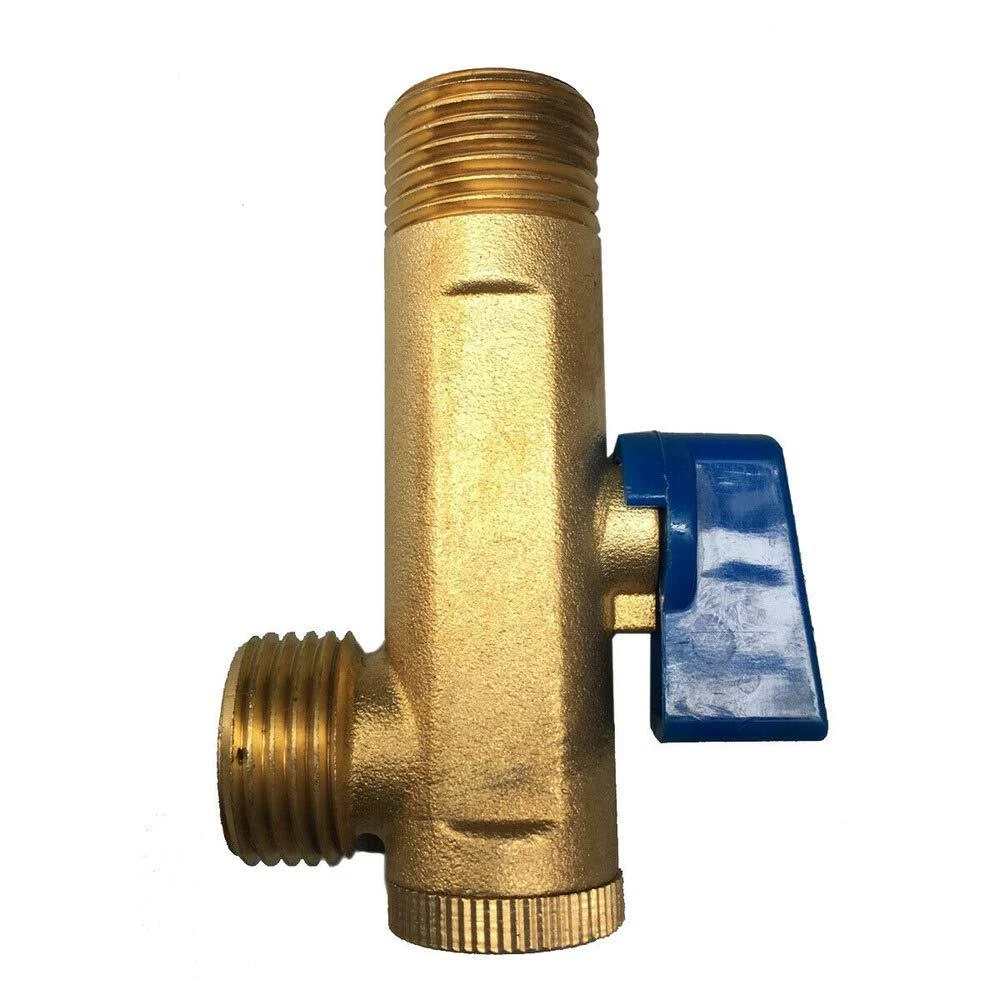

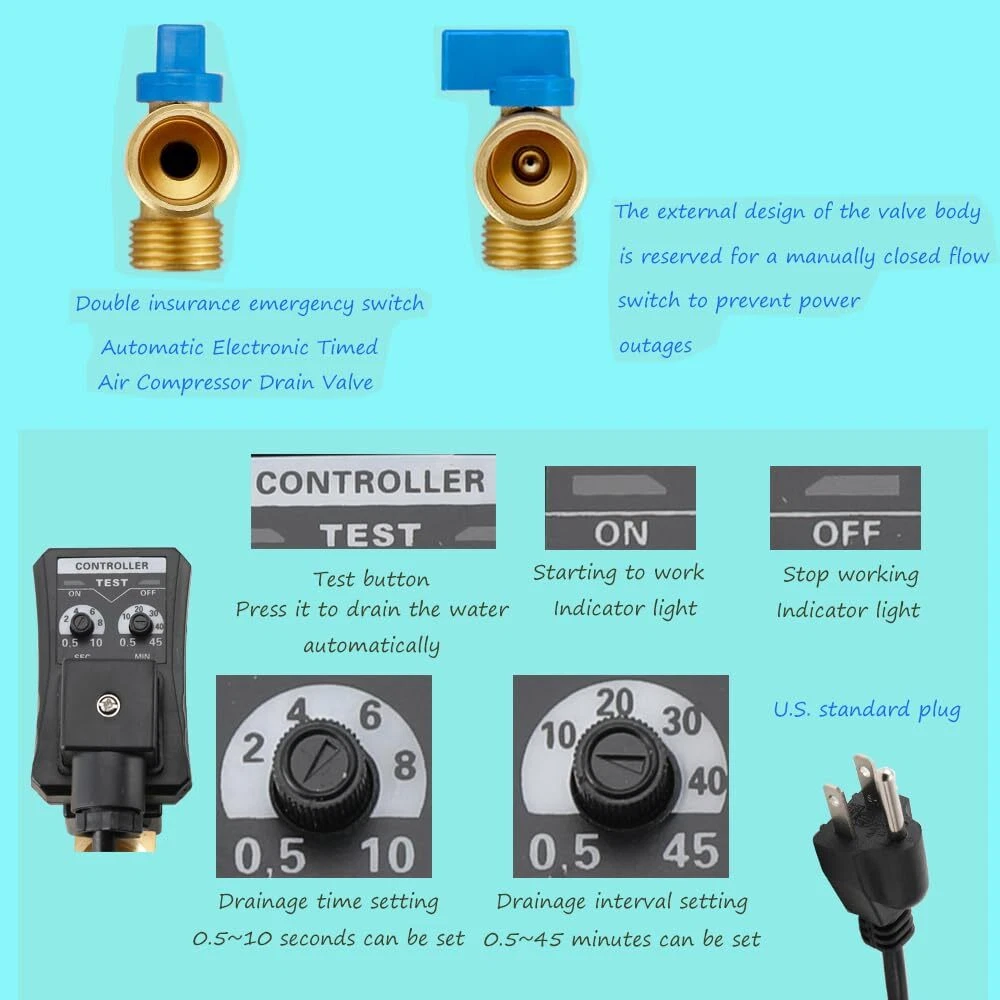

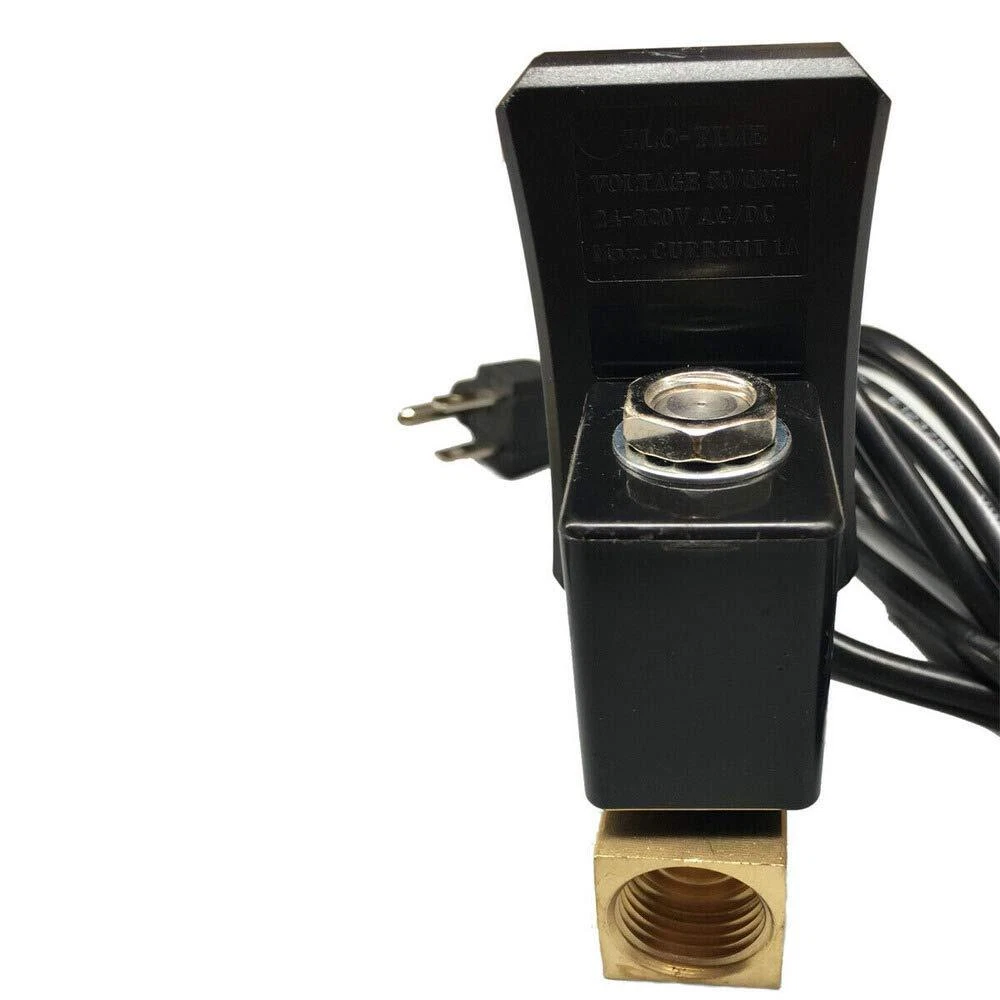

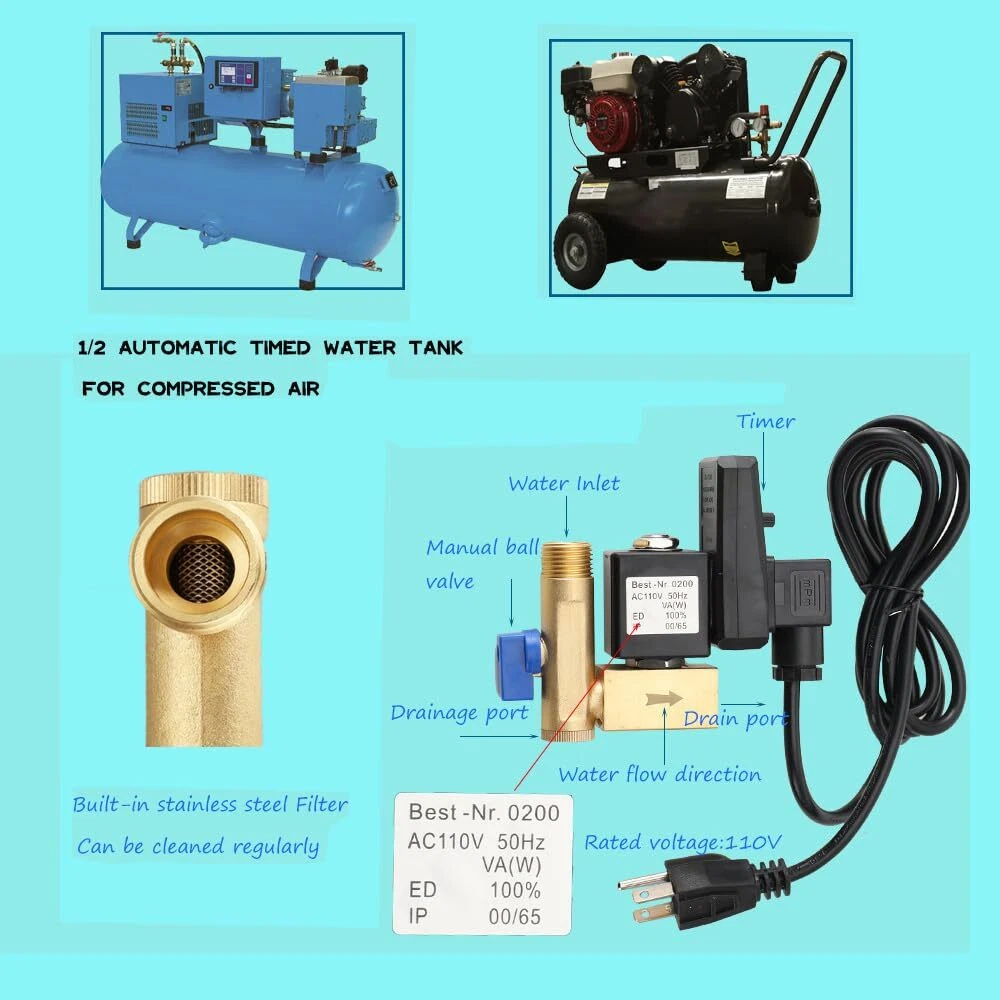

AC 110V Electronic Timed 2 way Air Compressor Gas Tank Automatic Drain Valve 1/2" Feature: Easy to install, fully automatic operation Power Cable With 3pin US Plug. about 1.8m Length Equipped with a ball valve filter, split with drain valve, an L-shaped structure Voltage: AC110V 50Hz Voltage range: 10% Time interval ( OFF ): 0.5--45 minutes (adjustable) Discharge time ( ON ): 0.5--10 seconds (adjustable) Manual test button: Yes( micro switch ) The current consumption: Max 4mA Ambient temperature: -40 °C to 60 °C. Protection grade: IP65 Shell material: Flame retardant ABS plastic Electrical connection: DIN43650A Indicator lamp: LED indicating power on / off Type: two-way direct-acting valve Flow aperture: 5 mm Insulation class: H In / out port size: 1/2" Maximum working pressure: 1.6Mpa Maximum temperature: 90 °C Valve material: Forging brass Package Contents: 1 * Drain Valve With Power Cable Notes: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. Type: two-way direct-acting valve. The current consumption: Max 4mA. Power supply voltage: AC 110V-120V/50Hz Air Compressor Tank Drain Valve.110 Volt Electronic Automatic Timer Moisture Drain for Air Compressors and Air Tanks. Time interval ( OFF ): 0.5--45 minutes (adjustable);Discharge time ( ON ): 0.5--10 seconds (adjustable). Equipped with a ball valve filter, split with drain valve, an L-shaped structure.
