Heavy Duty Air Pressure Switch Sunny L4, 4 Port, 95-125 PSI, 25

$ 15.96

Number of Items: 1 Package Dimensions: 4.06 x 4.02 x 3.46 inches Operating Voltage: 230 Volts Type: Does not apply Actuator Type: Plunger Mounting Type Panel Mount: Specification Met CE, UL, ETL Item model number: SU-L4_a Contact Type: Normally Open Batteries Required?: No Terminal: Screw Operation Mode: ON-NONE-ON Wattage: 14375 watts Contact Material: Brass Or Alloy Steel Control Method: Touch Current Rating: 25 Amps Connector Type: Screws gtin13: 7445013591511 Connectivity Protocol: X-10 Color: Black UPC: 7445013591511 Brand: Does not apply Unit Count: 1 Count Circuit Type: 4-way Batteries Included?: No Switch Type Pressure Switch: Material Brass Part Number: SU-L4_a Item Weight: 14.4 ounces Global Trade Identification Number: 00197809004602 Number of Positions: 4

Description

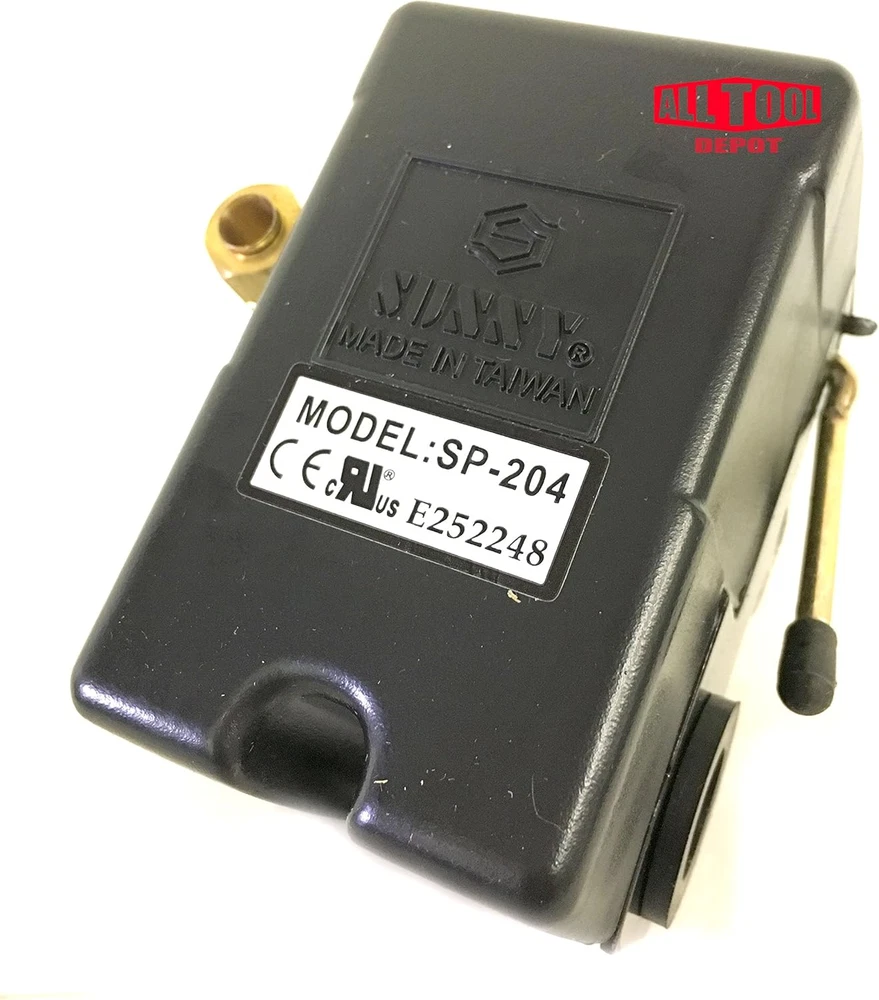

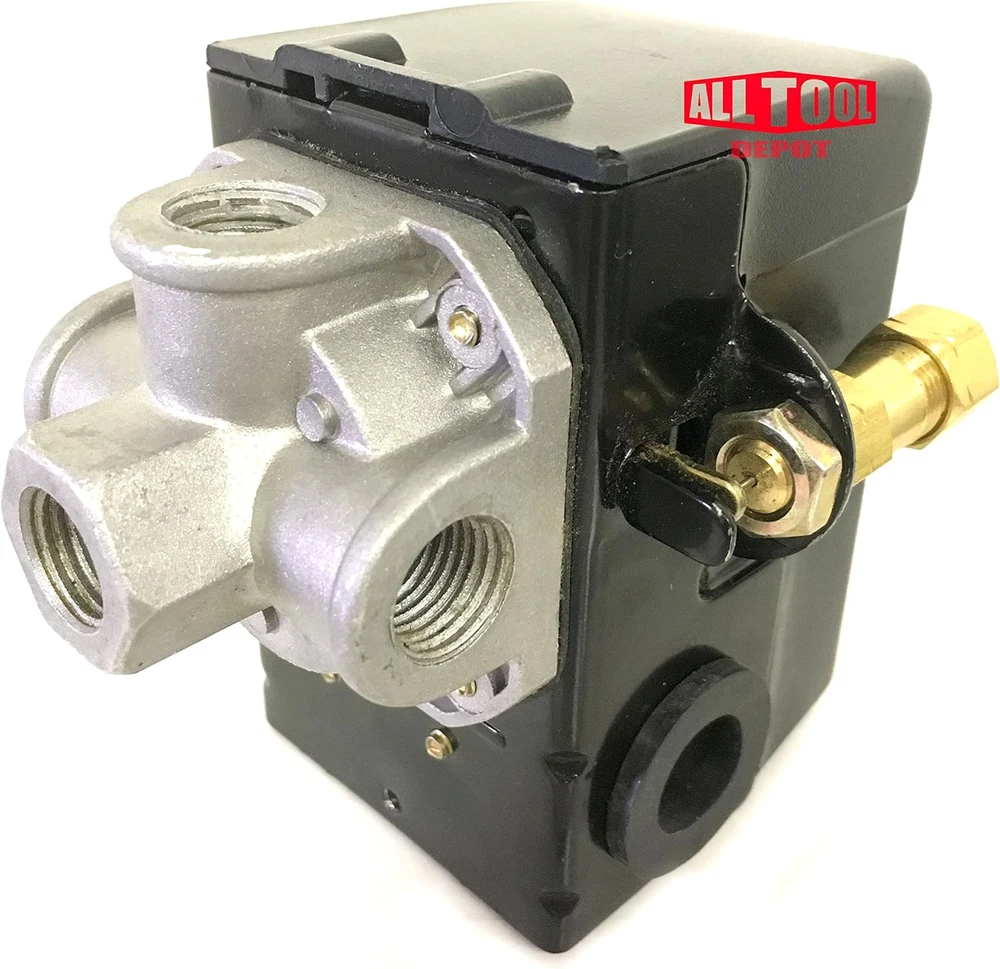

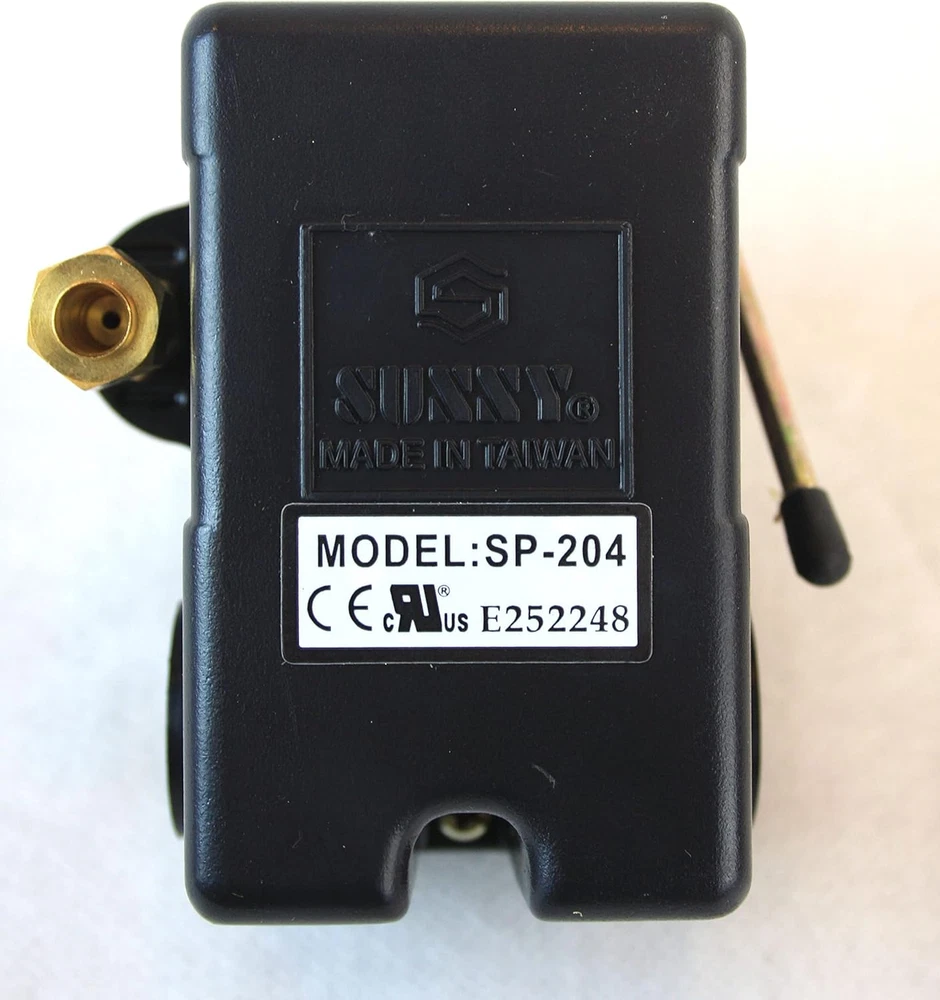

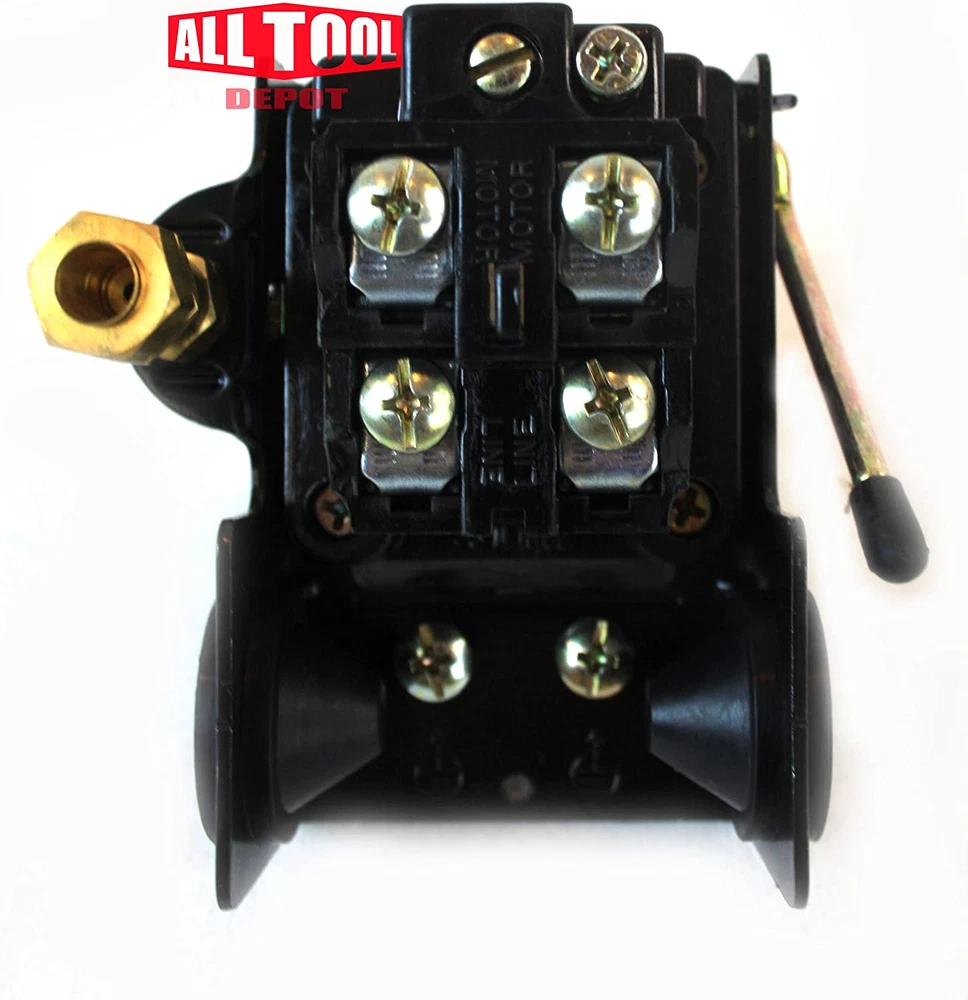

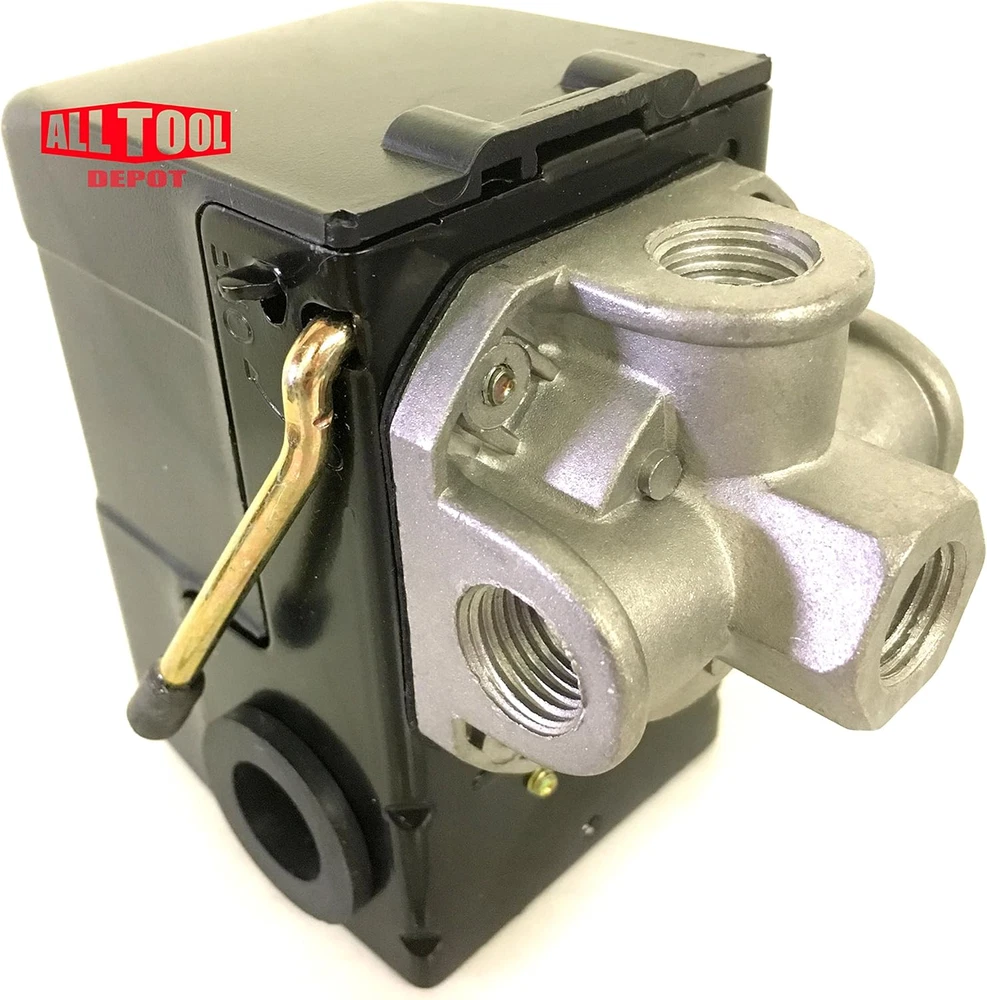

Heavy Duty SUNNY 95-125 PSI air compressor pressure switch, 4 Ports. MAX PRESSURE: 200 PSI MIN CLOSE: 60 PSI, 25AMP DIFFERENTIAL: 28-40 PSI 1/4" COMPRESSION UNLOADER VALVE CONNECTION, 1/4" FEMALE NPT TANK CONNECTION. 1PH: 115v,230v; 3PH: 230V,575V; DC: 32V,115V,230V This Sunny SU-L4 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 psi. The switch have four 1/4" NPSF internal fluid connection. The adjustable cut-out range is 60-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections. The maintained manual cut-out lever has auto and off positions.
